BC035-72-A-0380-0300-L-G
GCT
GCT
72W, 1.0MM PITCH PIN HDR, DIL, T
$4.83
Available to order
Reference Price (USD)
1+
$4.83049
500+
$4.7821851
1000+
$4.7338802
1500+
$4.6855753
2000+
$4.6372704
2500+
$4.5889655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

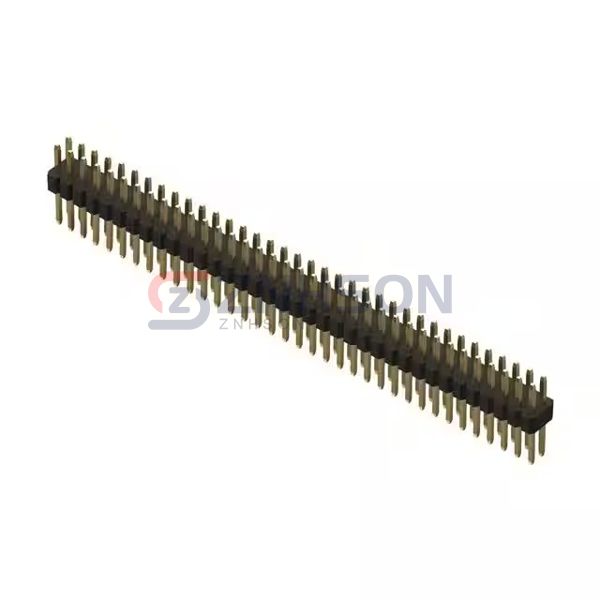

The BC035-72-A-0380-0300-L-G by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BC035-72-A-0380-0300-L-G supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 72
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.315" (8.00mm)
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
