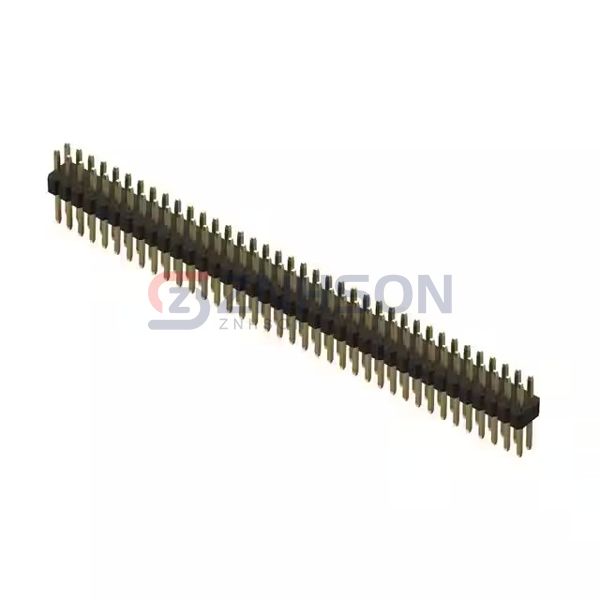

BC035-76-A-0380-0300-L-G
GCT

GCT
76W, 1.0MM PITCH PIN HDR, DIL, T
$4.95
Available to order
Reference Price (USD)
1+
$4.94760
500+
$4.898124
1000+
$4.848648
1500+
$4.799172
2000+
$4.749696
2500+
$4.70022
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC035-76-A-0380-0300-L-G by GCT is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. GCT delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 76
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.315" (8.00mm)
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
