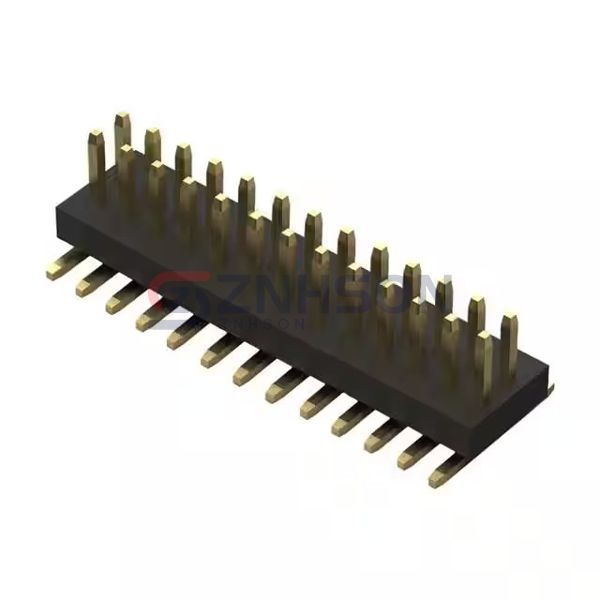

BC050-26A-K0-0200-0160-0480-LD
GCT
GCT
26W,1.0MM PITCH ELEV PIN HDR,DIL
$1.44
Available to order
Reference Price (USD)
1+
$1.43572
500+
$1.4213628
1000+
$1.4070056
1500+
$1.3926484
2000+
$1.3782912
2500+
$1.363934
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC050-26A-K0-0200-0160-0480-LD by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BC050-26A-K0-0200-0160-0480-LD supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
