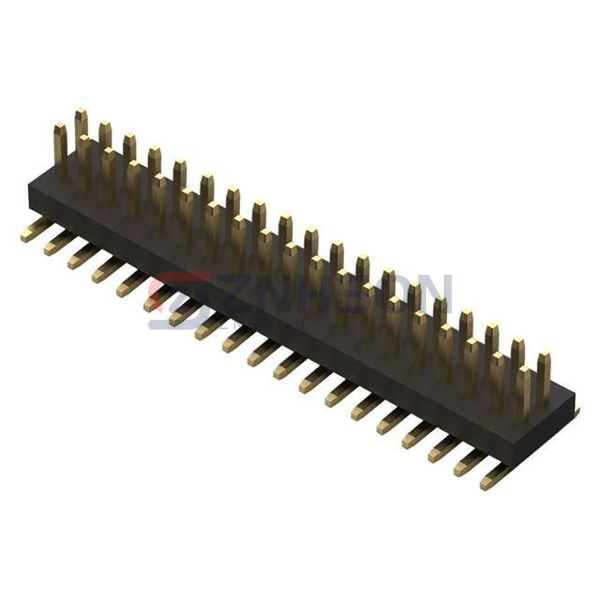

BC050-38A-K0-0200-0160-0480-LD
GCT
GCT
38W,1.0MM PITCH ELEV PIN HDR,DIL
$2.06
Available to order
Reference Price (USD)
1+
$2.05506
500+
$2.0345094
1000+
$2.0139588
1500+
$1.9934082
2000+
$1.9728576
2500+
$1.952307
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC050-38A-K0-0200-0160-0480-LD male pin header by GCT offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose GCT for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 38
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
