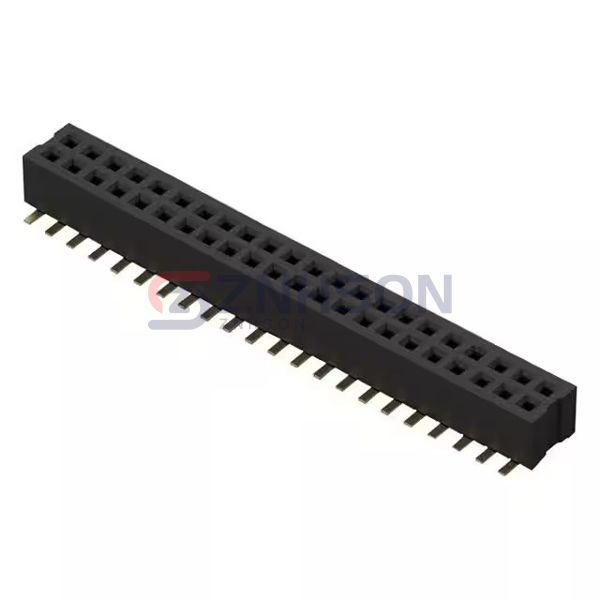

BC085-44-A-0390-L-D
GCT
GCT
44W, 1.0MM PITCH SOCKET, DIL, SM
$2.29
Available to order
Reference Price (USD)
1+
$2.29026
500+
$2.2673574
1000+
$2.2444548
1500+
$2.2215522
2000+
$2.1986496
2500+
$2.175747
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BC085-44-A-0390-L-D GCT Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, GCT provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Bottom or Top Entry
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 44
- Number of Positions Loaded: All
- Pitch - Mating: 0.039" (1.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.089" (2.26mm)
- Contact Length - Post: -
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Pick and Place
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Preci-Dip
399-87-104-10-003101
Mill-Max Manufacturing Corp.
851-99-037-20-001000
Samtec Inc.
CLE-112-01-G-DV-A-P
Samtec Inc.
SSA-108-S-G
Samtec Inc.
MMS-110-02-L-DH-LC-TR
Preci-Dip
416-87-272-41-003101
Samtec Inc.
SSQ-115-23-G-D
Samtec Inc.

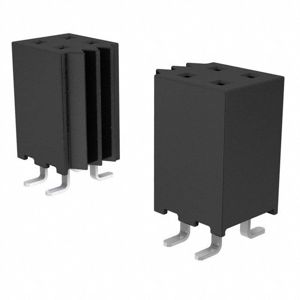

SQW-122-01-F-D-VS-K
