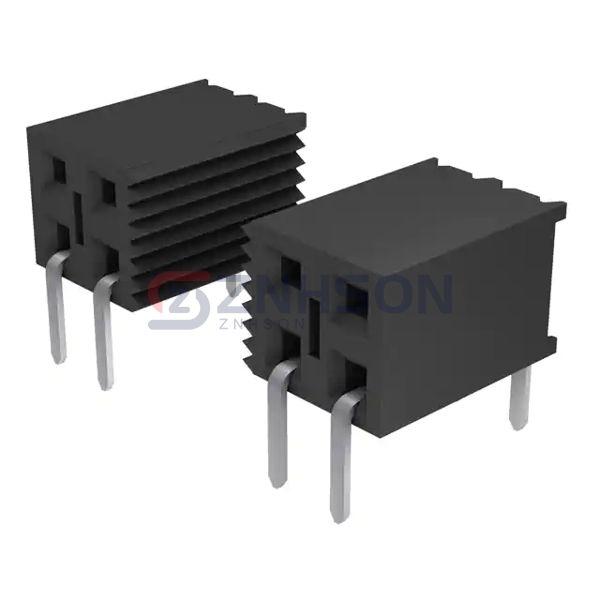

BCS-115-L-D-HE
Samtec Inc.
Samtec Inc.
CONN RCPT 30POS 0.1 GOLD PCB R/A
$5.26
Available to order
Reference Price (USD)
1+
$4.58000
10+
$4.39800
25+
$4.03120
50+
$3.84800
100+
$3.66480
250+
$3.20672
500+
$3.11508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BCS-115-L-D-HE Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 30
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Insulation Color: Black
- Insulation Height: 0.225" (5.72mm)
- Contact Length - Post: 0.125" (3.18mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 4.6A per Contact
- Voltage Rating: 475VAC
