BF030-06A-B1-0360-0277-0600-LB
GCT
GCT

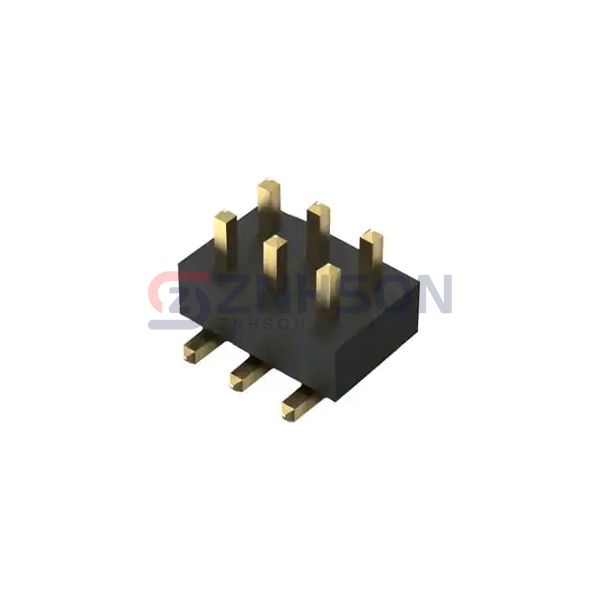

6POS, 2MM PITCH PIN HDR, DIL, SM
$0.47
Available to order
Reference Price (USD)
1+
$0.47000
500+
$0.4653
1000+
$0.4606
1500+
$0.4559
2000+
$0.4512
2500+
$0.4465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BF030-06A-B1-0360-0277-0600-LB by GCT is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. GCT delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
TSW-130-17-L-S
Samtec Inc.
ZSS-115-02-G-D-540
Samtec Inc.
TSM-115-01-S-SH-A
Samtec Inc.
FTSH-106-04-L-DV-A-P
TE Connectivity AMP Connectors
9-103323-0-12
HARTING
09185346901
Amphenol ICC (FCI)

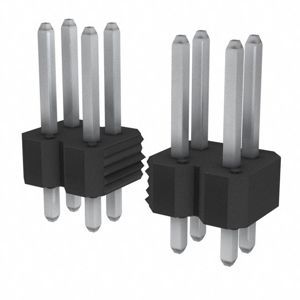

77313-401-64LF
