BF050-10-A-B-0600-0300-N-D
GCT
GCT
10W, 2MM PITCH PIN HDR, DIL, TH,
$0.39
Available to order
Reference Price (USD)
1+
$0.38808
500+
$0.3841992
1000+
$0.3803184
1500+
$0.3764376
2000+
$0.3725568
2500+
$0.368676
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

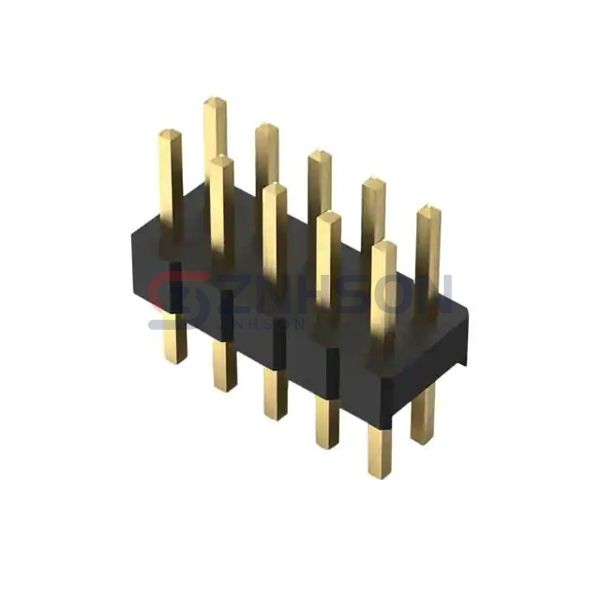

The BF050-10-A-B-0600-0300-N-D by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BF050-10-A-B-0600-0300-N-D supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.433" (11.00mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A per Contact
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
TSM-114-04-T-SV
Amphenol ICC (FCI)
77313-424-40LF
Amphenol ICC (FCI)
77313-127-30LF
Samtec Inc.
FTSH-130-03-L-DV-A-TR
Harwin Inc.

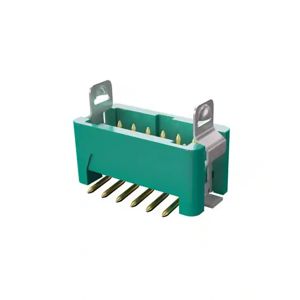

G125-MS11205L3R
Preci-Dip

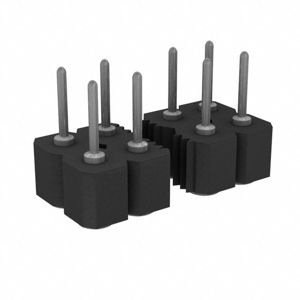

802-80-072-30-480101
Samtec Inc.

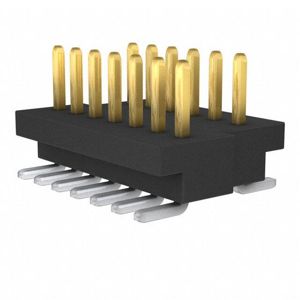

BKT-113-01-F-V-TR
Molex

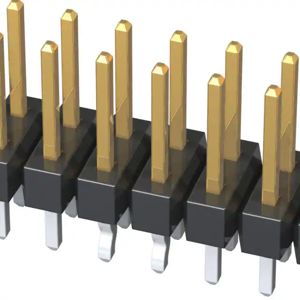

0702871145
