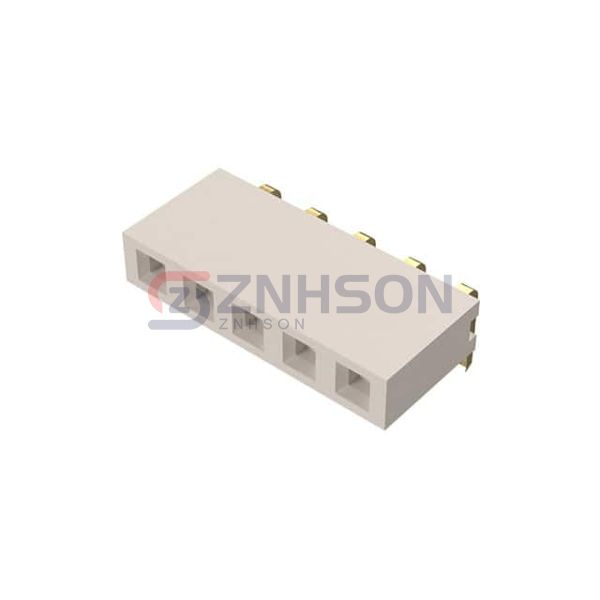

BG302-05-A-L-G
GCT
GCT
5W, 2.54MM PTH SOCKET, SIL, TH,
$0.71
Available to order
Reference Price (USD)
1+
$0.69000
10+
$0.65000
100+
$0.51000
500+
$0.45000
1,000+
$0.38000
5,000+
$0.34000
10,000+
$0.32000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BG302-05-A-L-G GCT Rectangular Connectors - Headers, Receptacles, and Female Sockets offer superior connectivity solutions for modern electronics. Designed with versatility in mind, these connectors support high-speed data transfer and power delivery. Their compact design and rugged build make them suitable for aerospace, military, and IoT applications. Whether you need board-to-board, cable-to-board, or wire-to-wire connections, GCT provides reliable options. Examples include avionics systems, defense equipment, and smart home devices.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Forked
- Style: Board to Board
- Number of Positions: 5
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Natural
- Insulation Height: 0.098" (2.50mm)
- Contact Length - Post: 0.126" (3.20mm)
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
