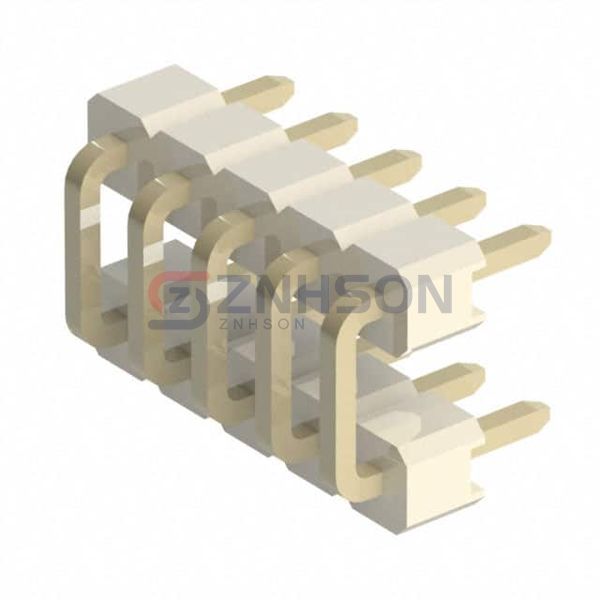

BG305-05-A-0500-L-D
GCT
GCT
5W, 2.54MM PTH HDR,U SHAPED,DUAL
$0.29
Available to order
Reference Price (USD)
1+
$0.29106
500+
$0.2881494
1000+
$0.2852388
1500+
$0.2823282
2000+
$0.2794176
2500+
$0.276507
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the BG305-05-A-0500-L-D rectangular connector header from GCT, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the BG305-05-A-0500-L-D adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. GCT guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.118" (3.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
