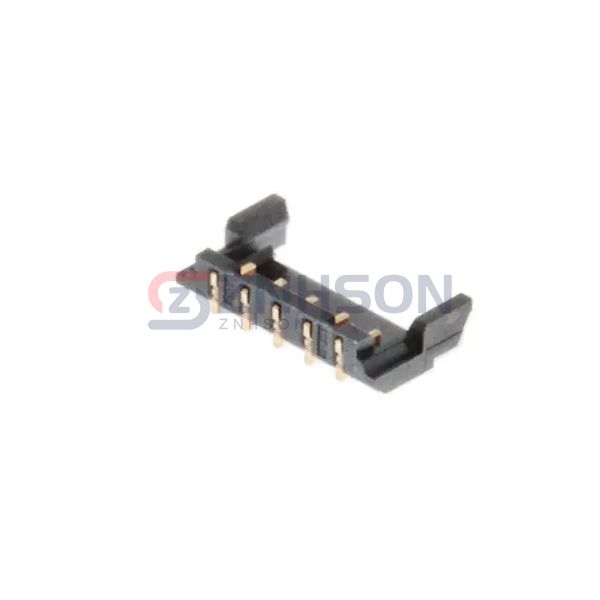

BM05B-ADHKS-GAN-ETB(HF)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER SMD R/A 5POS 1.3MM
$0.62
Available to order
Reference Price (USD)
1+
$0.62000
500+
$0.6138
1000+
$0.6076
1500+
$0.6014
2000+
$0.5952
2500+
$0.589
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the BM05B-ADHKS-GAN-ETB(HF) rectangular connector header from JST Sales America Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JST Sales America Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.051" (1.30mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.069" (1.75mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 3A
- Voltage Rating: 30V
