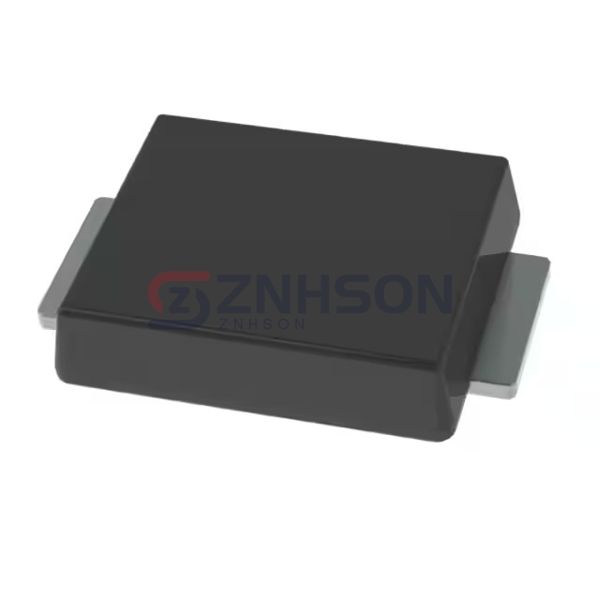

BR315F_R1_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT SCHOTTKY BARRIER R
$0.49
Available to order
Reference Price (USD)
1+
$0.49000
500+
$0.4851
1000+
$0.4802
1500+
$0.4753
2000+
$0.4704
2500+
$0.4655
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BR315F_R1_00001 by Panjit International Inc. is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the BR315F_R1_00001 ensures long-term reliability even in harsh operating conditions. Trust Panjit International Inc. for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 50 µA @ 150 V
- Capacitance @ Vr, F: 100pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-221AA, SMB Flat Leads
- Supplier Device Package: SMBF
- Operating Temperature - Junction: -65°C ~ 150°C
