BSW-110-04-G-S
Samtec Inc.
Samtec Inc.

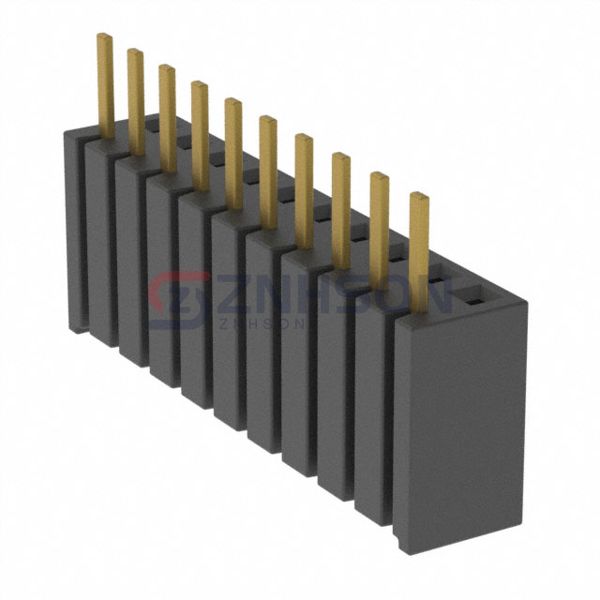

CONN RCPT 10POS 0.1 GOLD PCB
$3.83
Available to order
Reference Price (USD)
1+
$2.36000
10+
$2.14400
100+
$1.83750
500+
$1.53126
1,000+
$1.31250
5,000+
$1.16375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BSW-110-04-G-S Samtec Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets are designed for precision and reliability in critical applications. Featuring gold-plated contacts, polarized housings, and waterproof options, these connectors excel in marine, oil & gas, and transportation industries. Their robust design prevents misalignment and ensures long-term performance. Examples include underwater sensors, railway signaling systems, and offshore drilling equipment. Choose Samtec Inc. for connectors that meet the highest industry standards.
Specifications
- Product Status: Active
- Connector Type: Receptacle, Breakaway
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 10
- Number of Positions Loaded: All
- Pitch - Mating: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing - Mating: -
- Mounting Type: Through Hole, Bottom Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Insulation Color: Black
- Insulation Height: 0.350" (8.89mm)
- Contact Length - Post: 0.170" (4.32mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): -
- Voltage Rating: -
