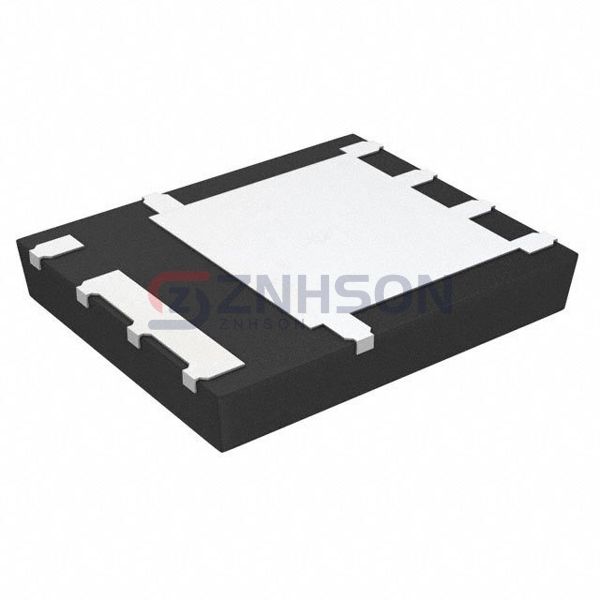

BSZ0803LSATMA1
Infineon Technologies
Infineon Technologies
MOSFET N-CH 100V 9A/40A TSDSON
$1.65
Available to order
Reference Price (USD)
1+
$1.65000
500+
$1.6335
1000+
$1.617
1500+
$1.6005
2000+
$1.584
2500+
$1.5675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the BSZ0803LSATMA1 from Infineon Technologies, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the BSZ0803LSATMA1 ensures reliable performance in demanding environments. Upgrade your circuit designs with Infineon Technologies's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Ta), 40A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 14.6mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.3V @ 23µA
- Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 2.1W (Ta), 52W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-TDSON-8 FL
- Package / Case: 8-PowerTDFN
