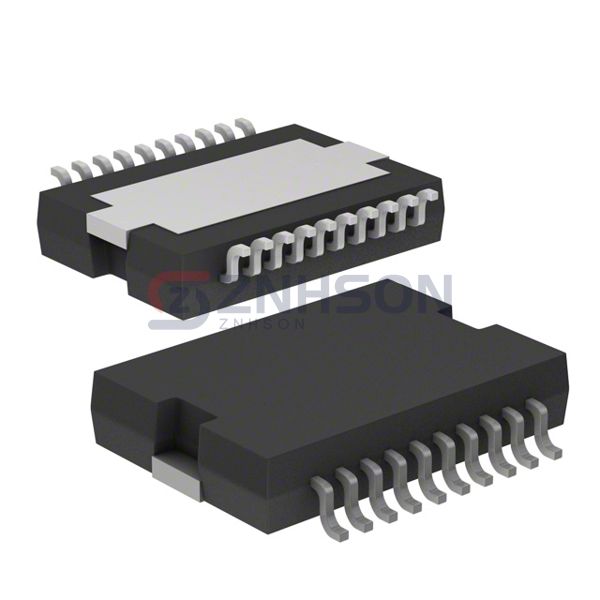

BTS824R
Infineon Technologies
Infineon Technologies
IC PWR SWITCH N-CHAN 1:1 DSO-20
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BTS824R by Infineon Technologies is a top-tier Power Distribution Switch and Load Driver IC, engineered for optimal performance in power-sensitive applications. As part of the PMIC category, it excels in managing power distribution with minimal energy loss. Key features include adjustable current limits, fast response times, and robust ESD protection. Whether you're designing consumer electronics, automotive systems, or IoT devices, the BTS824R provides the reliability you need. Trust Infineon Technologies for innovative IC solutions that power the future of technology.
Specifications
- Product Status: Obsolete
- Switch Type: General Purpose
- Number of Outputs: 4
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 5.5V ~ 40V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 3.7A
- Rds On (Typ): 70mOhm
- Input Type: Non-Inverting
- Features: Status Flag
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PG-DSO-20-12
- Package / Case: 20-PowerSOIC (0.433", 11.00mm Width)
