BTW68-800RG
STMicroelectronics
STMicroelectronics
SCR 800V 30A TOP3
$9.05
Available to order
Reference Price (USD)
1+
$6.58000
30+
$5.58867
120+
$4.84342
510+
$4.12312
1,020+
$3.47732
2,520+
$3.30345
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BTW68-800RG from STMicroelectronics redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. STMicroelectronics's BTW68-800RG combines advanced engineering with practical functionality.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1.5 V
- Current - Gate Trigger (Igt) (Max): 50 mA
- Voltage - On State (Vtm) (Max): 2.1 V
- Current - On State (It (AV)) (Max): 19 A
- Current - On State (It (RMS)) (Max): 30 A
- Current - Hold (Ih) (Max): 75 mA
- Current - Off State (Max): 20 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 400A, 420A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TOP-3
- Supplier Device Package: TOP3
Related Products
Vishay General Semiconductor - Diodes Division
VS-ST223C08CFN0
Littelfuse Inc.
S4010DS3RP
SMC Diode Solutions
SCT1655SJ
NTE Electronics, Inc
NTE5458
NTE Electronics, Inc
NTE5516
Vishay General Semiconductor - Diodes Division
VS-ST730C14L1L
Vishay General Semiconductor - Diodes Division
VS-25TTS08STRL-M3
Littelfuse Inc.
EC103M2RP
Littelfuse Inc.

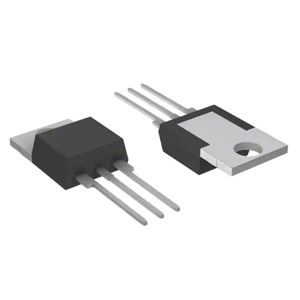

S6006RS2TP
