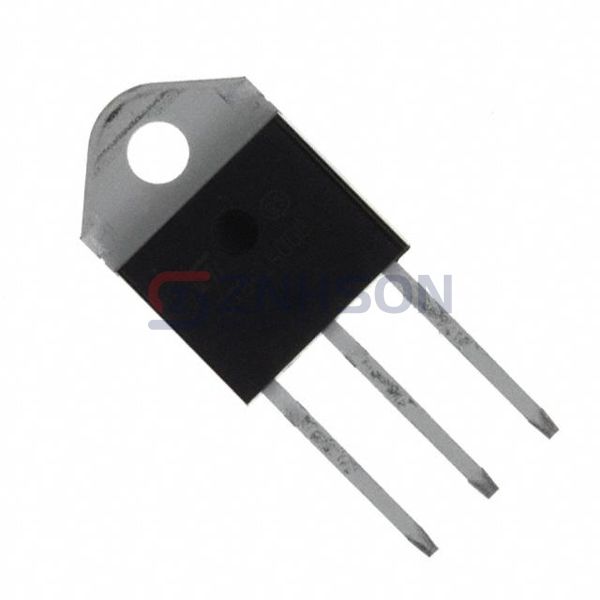

BTW69-800RG
STMicroelectronics
STMicroelectronics
SCR 800V 50A TOP3
$9.84
Available to order
Reference Price (USD)
1+
$7.30000
30+
$6.29133
120+
$5.46283
510+
$4.75694
1,020+
$4.14315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the BTW69-800RG SCR from STMicroelectronics, a top-tier choice in Thyristors. This Discrete Semiconductor Product excels in high-power switching with minimal energy loss. Key features include high surge capability and reliable turn-off characteristics. Commonly used in electric vehicle charging stations, power supplies, and HVAC systems, the BTW69-800RG is versatile and dependable. STMicroelectronics's cutting-edge technology ensures this SCR meets global industry standards.
Specifications
- Product Status: Active
- Voltage - Off State: 800 V
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Gate Trigger (Igt) (Max): 80 mA
- Voltage - On State (Vtm) (Max): 1.9 V
- Current - On State (It (AV)) (Max): 32 A
- Current - On State (It (RMS)) (Max): 50 A
- Current - Hold (Ih) (Max): 150 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 580A, 610A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TOP-3
- Supplier Device Package: TOP3
