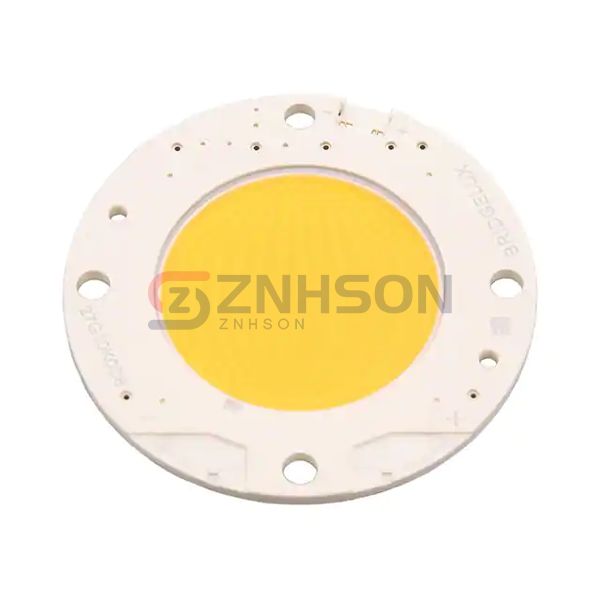

BXRC-30G10K0-D-83
Bridgelux
Bridgelux
VERO 29D WARM WHITE LED ARRAY
$30.26
Available to order
Reference Price (USD)
1+
$30.26000
500+
$29.9574
1000+
$29.6548
1500+
$29.3522
2000+
$29.0496
2500+
$28.747
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your lighting projects with the BXRC-30G10K0-D-83 from Bridgelux, a standout in the Optoelectronics category under LED Lighting - COBs, Engines, Modules, Strips. This product boasts excellent color rendering and thermal management, making it suitable for high-end applications like museum lighting, medical lighting, and signage. Trust Bridgelux to provide you with a LED solution that meets the highest industry standards.
Specifications
- Product Status: Active
- Type: Chip On Board (COB)
- Color: White, Warm
- CCT (K): 3000K 3-Step MacAdam Ellipse
- Wavelength: -
- Configuration: Round
- Luminous Flux @ Current/Temperature: 9290lm (Typ)
- Current - Test: 1.7A
- Temperature - Test: 25°C
- Voltage - Forward (Vf) (Typ): 36.4V
- Lumens/Watt @ Current - Test: 150 lm/W
- Current - Max: 5.5A
- CRI (Color Rendering Index): 90
- Viewing Angle: 120°
- Features: With Connector
- Size / Dimension: 49.20mm Dia
- Height: 1.90mm
- Light Emitting Surface (LES): 29.10mm Dia
- Lens Type: Flat
