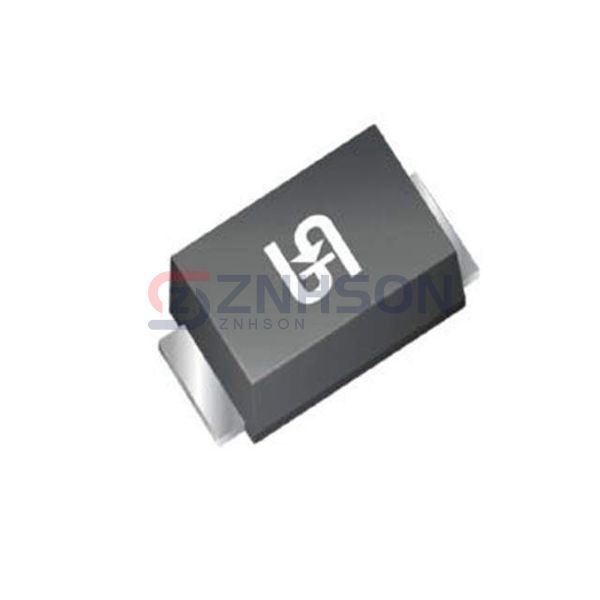

BZD27C22P
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 22.05V 1W SUB SMA
$0.12
Available to order
Reference Price (USD)
1+
$0.11707
500+
$0.1158993
1000+
$0.1147286
1500+
$0.1135579
2000+
$0.1123872
2500+
$0.1112165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZD27C22P from Taiwan Semiconductor Corporation is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the BZD27C22P is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Not For New Designs
- Voltage - Zener (Nom) (Vz): 22.05 V
- Tolerance: ±5.66%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-219AB
- Supplier Device Package: Sub SMA
