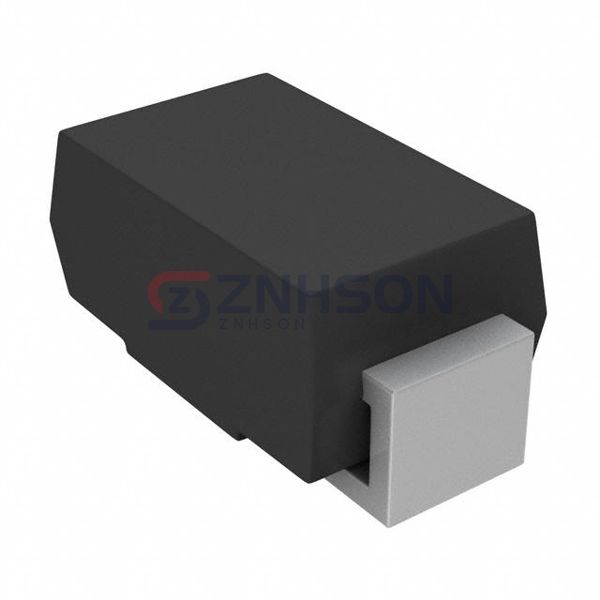

BZG05C100-M3-18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 100V 1.25W DO214AC
$0.11
Available to order
Reference Price (USD)
1+
$0.11253
500+
$0.1114047
1000+
$0.1102794
1500+
$0.1091541
2000+
$0.1080288
2500+
$0.1069035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZG05C100-M3-18 by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZG05C100-M3-18 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 100 V
- Tolerance: ±5.5%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 350 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 75 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
