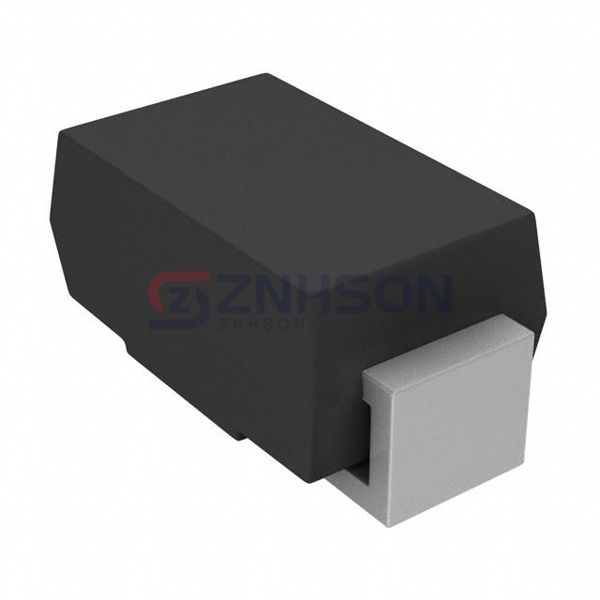

BZG05C22-HM3-18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 1.25W DO214AC
$0.12
Available to order
Reference Price (USD)
1+
$0.12106
500+
$0.1198494
1000+
$0.1186388
1500+
$0.1174282
2000+
$0.1162176
2500+
$0.115007
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the BZG05C22-HM3-18 Zener diode from Vishay General Semiconductor - Diodes Division, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The BZG05C22-HM3-18 is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5.68%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 25 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
