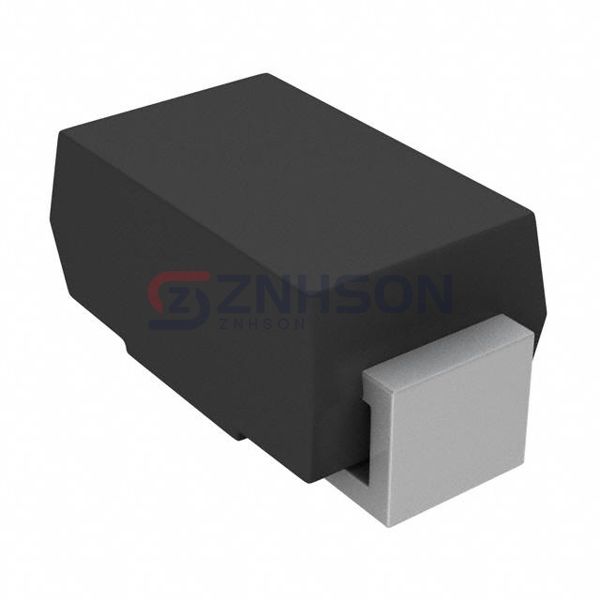

BZG05C56-M3-18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 56V 1.25W DO214AC
$0.11
Available to order
Reference Price (USD)
1+
$0.11253
500+
$0.1114047
1000+
$0.1102794
1500+
$0.1091541
2000+
$0.1080288
2500+
$0.1069035
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the BZG05C56-M3-18 Zener diode from Vishay General Semiconductor - Diodes Division is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The BZG05C56-M3-18 is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 56 V
- Tolerance: ±7.14%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 120 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 43 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
