BZG05C9V1-M3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division

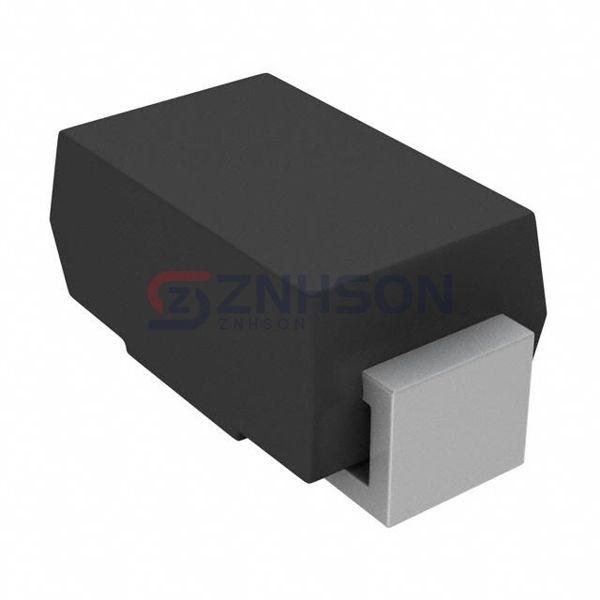

DIODE ZENER 9.1V 1.25W DO214AC
$0.42
Available to order
Reference Price (USD)
1+
$0.42000
500+
$0.4158
1000+
$0.4116
1500+
$0.4074
2000+
$0.4032
2500+
$0.399
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZG05C9V1-M3-08 from Vishay General Semiconductor - Diodes Division is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the BZG05C9V1-M3-08 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 9.1 V
- Tolerance: ±6.04%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 5 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 6.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: DO-214AC (SMA)
