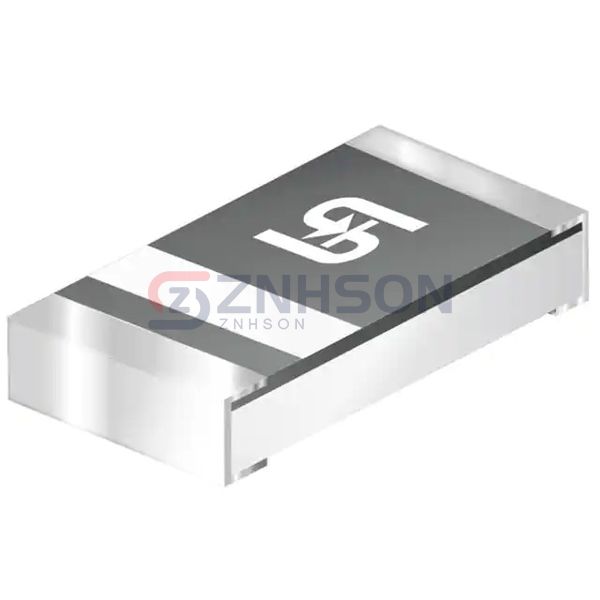

BZS55C13 RXG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 13V 500MW 1206
$0.04
Available to order
Reference Price (USD)
30,000+
$0.03016
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZS55C13 RXG by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZS55C13 RXG is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 13 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 26 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 10 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 10 mA
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 1206 (3216 Metric)
- Supplier Device Package: 1206
