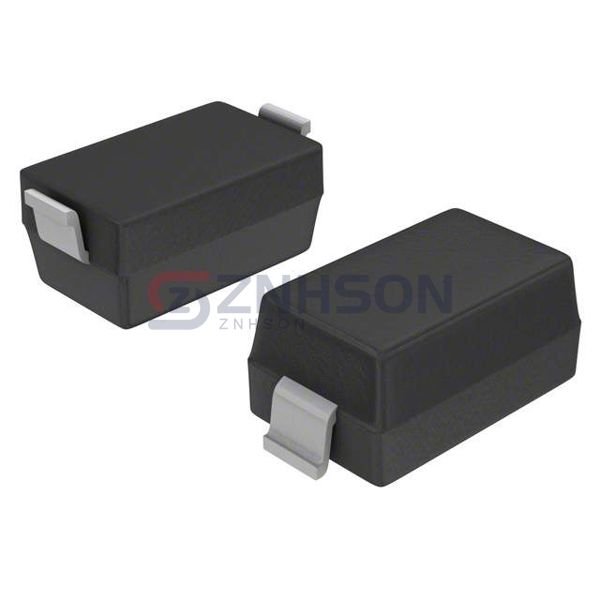

BZT52C22-7-F
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 22V 500MW SOD123
$0.23
Available to order
Reference Price (USD)
3,000+
$0.03750
6,000+
$0.03300
15,000+
$0.02850
30,000+
$0.02700
75,000+
$0.02550
150,000+
$0.02250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT52C22-7-F by Diodes Incorporated is a top-tier single Zener diode, part of the Discrete Semiconductor Products family. Renowned for its accuracy and efficiency, this diode is a go-to solution for voltage regulation needs. Its key attributes include a tight voltage tolerance, minimal noise, and high power dissipation capacity. The BZT52C22-7-F excels in applications like voltage reference circuits, power management systems, and signal conditioning. For example, it is extensively used in IoT devices, ensuring stable operation by maintaining precise voltage levels. Additionally, it plays a vital role in aerospace and defense electronics, where reliability under extreme conditions is crucial.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±6%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SOD-123
- Supplier Device Package: SOD-123
