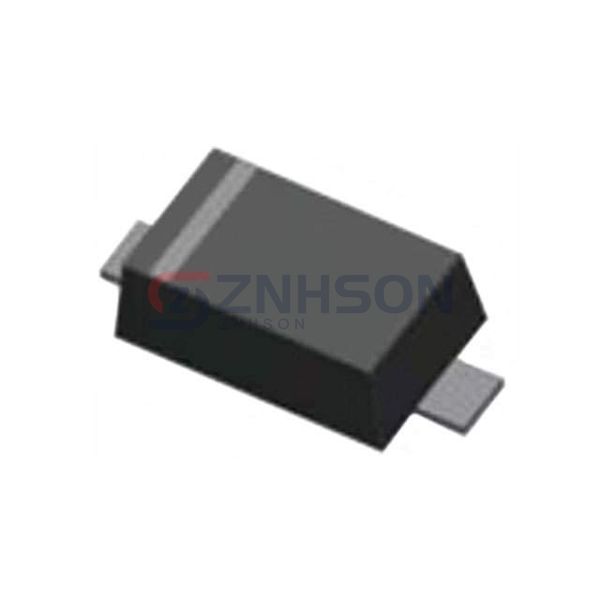

BZT52C22 RHG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 22V 500MW SOD123F
$0.04
Available to order
Reference Price (USD)
3,000+
$0.04233
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the BZT52C22 RHG Zener diode from Taiwan Semiconductor Corporation is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The BZT52C22 RHG is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 45 nA @ 15.4 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123F
- Supplier Device Package: SOD-123F
