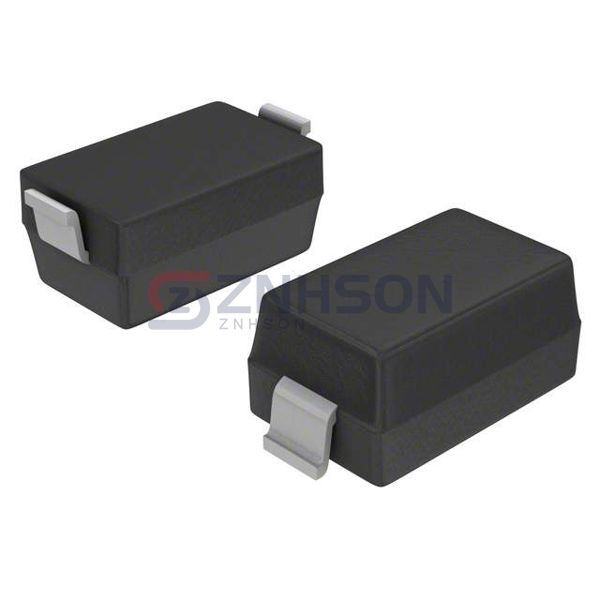

BZT52C9V1Q-7-F
Diodes Incorporated
Diodes Incorporated
ZENER DIODE SOD123 T&R 3K
$0.04
Available to order
Reference Price (USD)
1+
$0.04225
500+
$0.0418275
1000+
$0.041405
1500+
$0.0409825
2000+
$0.04056
2500+
$0.0401375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT52C9V1Q-7-F from Diodes Incorporated is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the BZT52C9V1Q-7-F is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 9.1 V
- Tolerance: ±6.04%
- Power - Max: 370 mW
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 500 nA @ 6 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123
- Supplier Device Package: SOD-123
