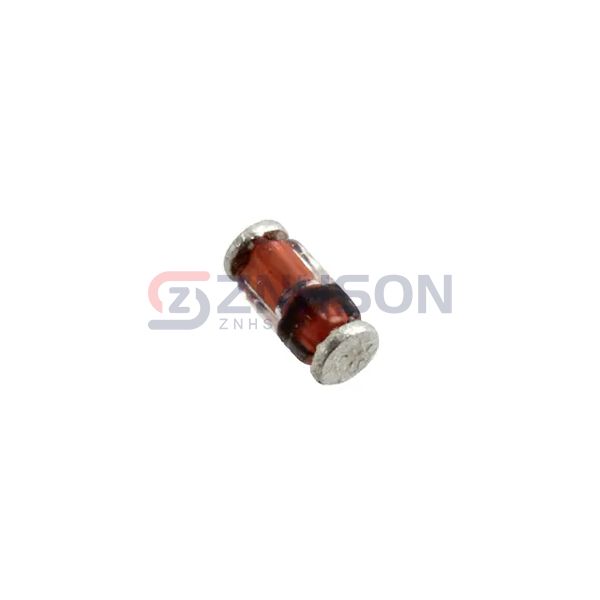

BZT55C22-GS18
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 500MW SOD80
$0.03
Available to order
Reference Price (USD)
10,000+
$0.02620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT55C22-GS18 from Vishay General Semiconductor - Diodes Division is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the BZT55C22-GS18 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: SOD-80 Variant
- Supplier Device Package: SOD-80 QuadroMELF
Related Products
MACOM Technology Solutions
JANTXV1N4114-1
onsemi
SMBZ1463LT1
Diotec Semiconductor
ZMC12
Vishay General Semiconductor - Diodes Division
MMSZ5233B-G3-08
Solid State Inc.
1N3002
NXP Semiconductors
BZX79-B5V1,133
Vishay General Semiconductor - Diodes Division
TLZ18-GS08
Nexperia USA Inc.
BZX585-C16,115
Microchip Technology

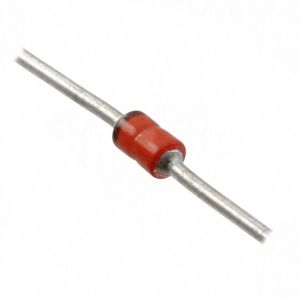

JANTX1N4483
