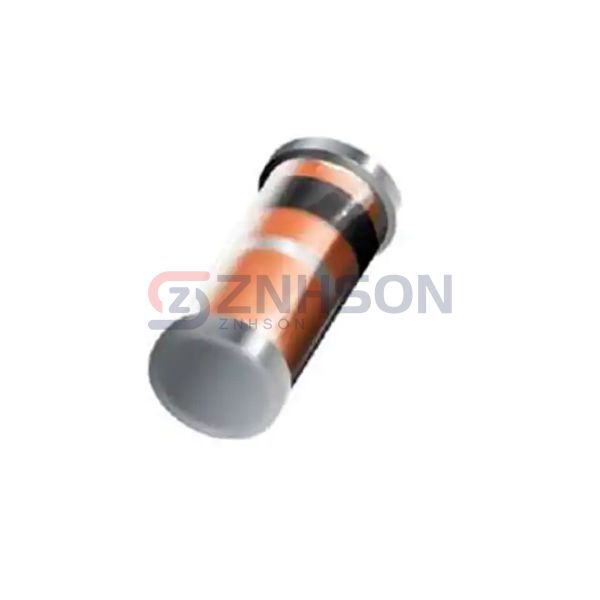

BZT55C22 L0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 22V 500MW MINI MELF
$0.04
Available to order
Reference Price (USD)
10,000+
$0.02340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the BZT55C22 L0G Zener diode from Taiwan Semiconductor Corporation, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The BZT55C22 L0G is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: Mini MELF
