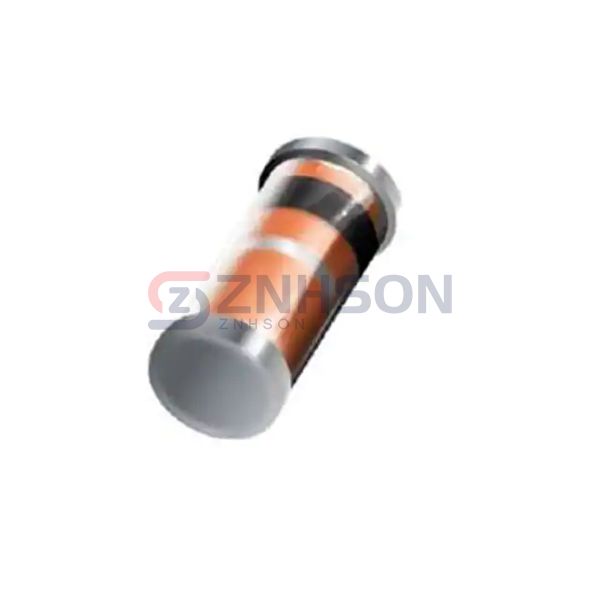

BZT55C56 L0G
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
DIODE ZENER 56V 500MW MINI MELF
$0.04
Available to order
Reference Price (USD)
10,000+
$0.02340
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZT55C56 L0G by Taiwan Semiconductor Corporation is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZT55C56 L0G is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 56 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 135 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 42 V
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 10 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: Mini MELF
