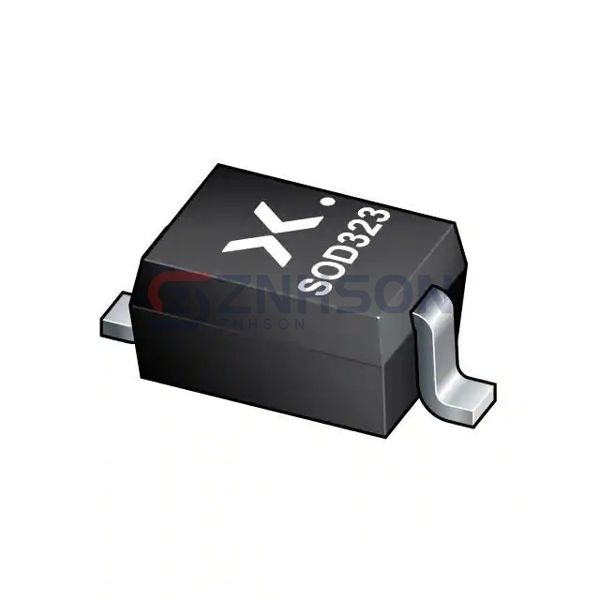

BZX38450-C22F
Nexperia USA Inc.
Nexperia USA Inc.
BZX38450-C22/SOD323/SOD2
$0.03
Available to order
Reference Price (USD)
1+
$0.03198
500+
$0.0316602
1000+
$0.0313404
1500+
$0.0310206
2000+
$0.0307008
2500+
$0.030381
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BZX38450-C22F by Nexperia USA Inc. is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the BZX38450-C22F is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 300 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
