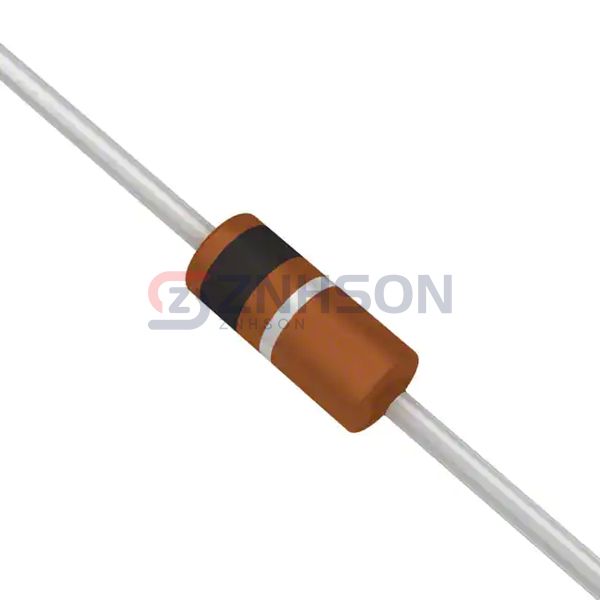

BZX55B9V1-TR
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 9.1V 500MW DO35
$0.23
Available to order
Reference Price (USD)
1+
$0.23000
500+
$0.2277
1000+
$0.2254
1500+
$0.2231
2000+
$0.2208
2500+
$0.2185
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the BZX55B9V1-TR Zener diode from Vishay General Semiconductor - Diodes Division is a critical component in the Discrete Semiconductor Products category. This single Zener diode is designed to deliver unmatched voltage regulation, with features such as high surge current capability and low dynamic impedance. It is particularly suited for applications in automotive electronics, where it protects ECUs and sensors from voltage surges. The BZX55B9V1-TR is also widely used in industrial automation, providing stable voltage references for PLCs and motor drives. Its versatility extends to consumer electronics, where it ensures the longevity of devices like smartphones and laptops by preventing voltage overloads.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 9.1 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 6.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
