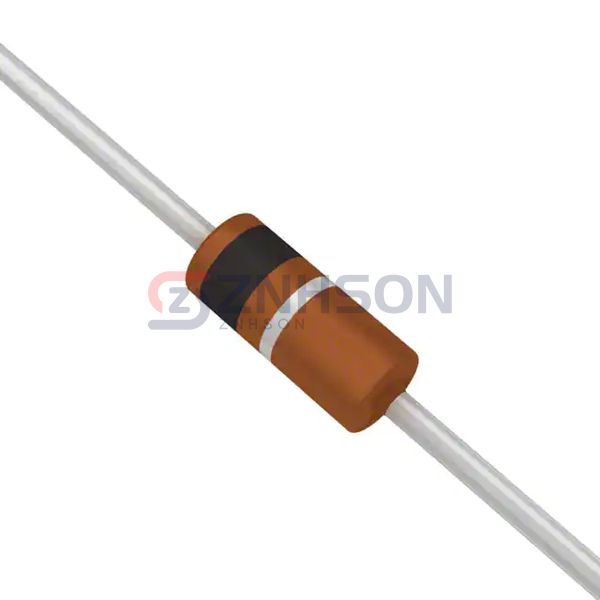

BZX55C22-TR
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 22V 500MW DO35
$0.21
Available to order
Reference Price (USD)
1+
$0.21000
500+
$0.2079
1000+
$0.2058
1500+
$0.2037
2000+
$0.2016
2500+
$0.1995
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the BZX55C22-TR Zener diode from Vishay General Semiconductor - Diodes Division, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The BZX55C22-TR is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 16 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
