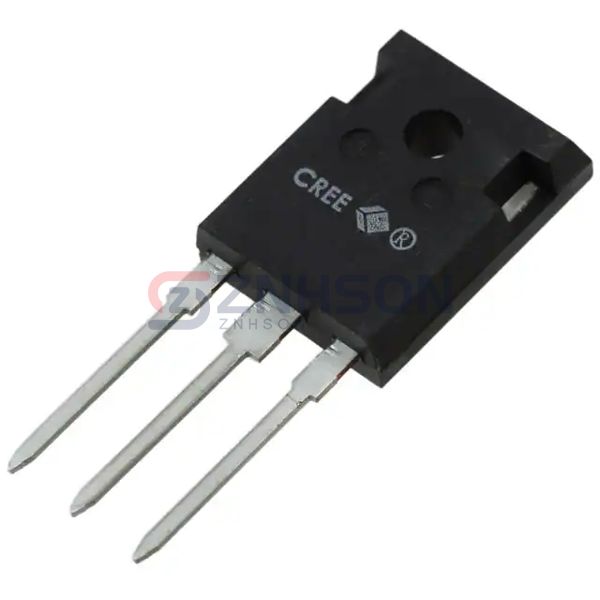

C4D10120D
Wolfspeed, Inc.
Wolfspeed, Inc.
DIODE ARRAY SCHOTTKY 1200V TO247
$11.82
Available to order
Reference Price (USD)
1+
$11.26000
100+
$9.38000
500+
$8.04004
1,000+
$7.04003
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the C4D10120D by Wolfspeed, Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Wolfspeed, Inc.'s patented junction design, the C4D10120D achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Silicon Carbide Schottky
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io) (per Diode): 9A
- Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 5 A
- Speed: No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr): 0 ns
- Current - Reverse Leakage @ Vr: 150 µA @ 1200 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
