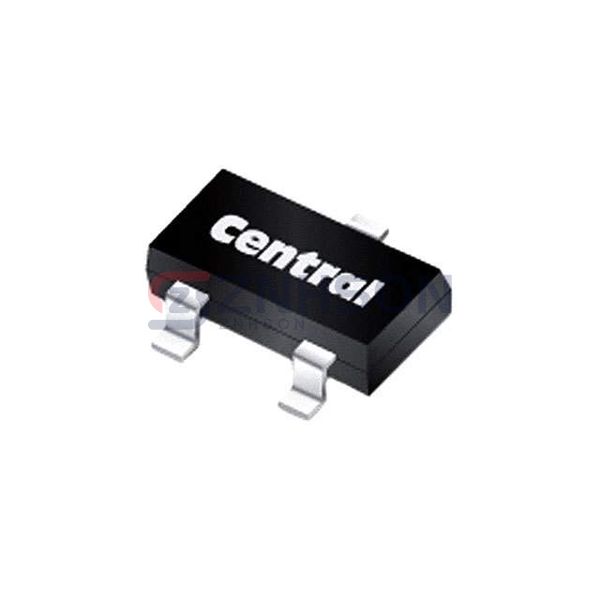

CBAT54C TR PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE ARRAY SCHOTTKY 30V SOT23
$0.48
Available to order
Reference Price (USD)
1+
$0.48000
500+
$0.4752
1000+
$0.4704
1500+
$0.4656
2000+
$0.4608
2500+
$0.456
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the CBAT54C TR PBFREE by Central Semiconductor Corp represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Central Semiconductor Corp's patented junction design, the CBAT54C TR PBFREE achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23
Related Products
SMC Diode Solutions
83CNQ100SL
Power Integrations
LQA12B300C
Micro Commercial Co
BAS40V-TP
onsemi
NRVBB40L45CTT4G
Rohm Semiconductor
RBR10NS30AFHTL
Vishay General Semiconductor - Diodes Division
VI30150C-M3/4W
Diodes Incorporated

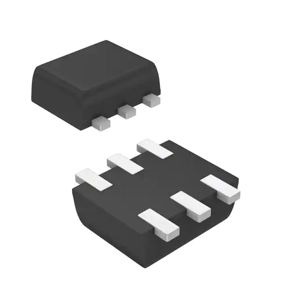

BAT40V-7
Vishay General Semiconductor - Diodes Division

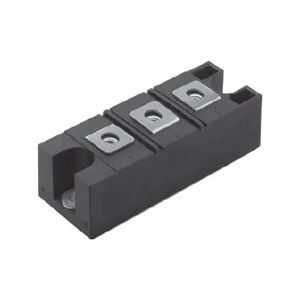

VS-VSKC166/08PBF
