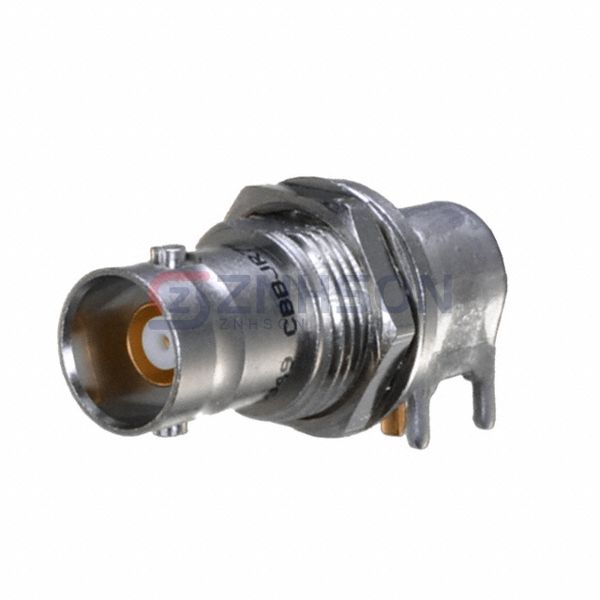

CBBJR79TL
Cinch Connectivity Solutions Trompeter
Cinch Connectivity Solutions Trompeter
CONN TRB JACK R/A PCB
$82.71
Available to order
Reference Price (USD)
1+
$71.44000
10+
$67.23800
25+
$65.13720
50+
$64.27200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CBBJR79TL from Cinch Connectivity Solutions Trompeter represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The CBBJR79TL variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TRB, Twinaxial/Triaxial
- Connector Type: Jack, Female Socket (Concentric)
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: Non-Constant
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 500 MHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
