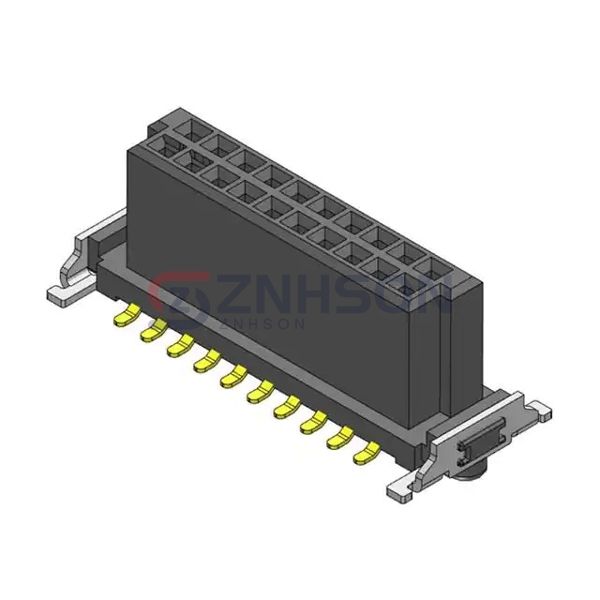

CBEC225-1079B001C1AF
Greenconn
Greenconn
PITCH 1.27MM FEMALE CONNETOR SMC
$2.03
Available to order
Reference Price (USD)
1+
$2.03000
500+
$2.0097
1000+
$1.9894
1500+
$1.9691
2000+
$1.9488
2500+
$1.9285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve seamless connectivity with CBEC225-1079B001C1AF Greenconn Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors offer excellent electrical performance and mechanical stability for demanding applications. Suitable for telecommunications infrastructure, medical imaging, and industrial machinery, they ensure uninterrupted signal transmission. Features include high-current capacity, flame-retardant housings, and customizable pin configurations. Examples include base stations, MRI machines, and CNC equipment. Greenconn connectors are designed to meet the evolving needs of modern technology.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board
- Number of Positions: 20
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Insulation Color: Black
- Insulation Height: 0.246" (6.25mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Gold
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide, Pick and Place, Solder Retention
- Current Rating (Amps): 1.7A per Contact
- Voltage Rating: -
