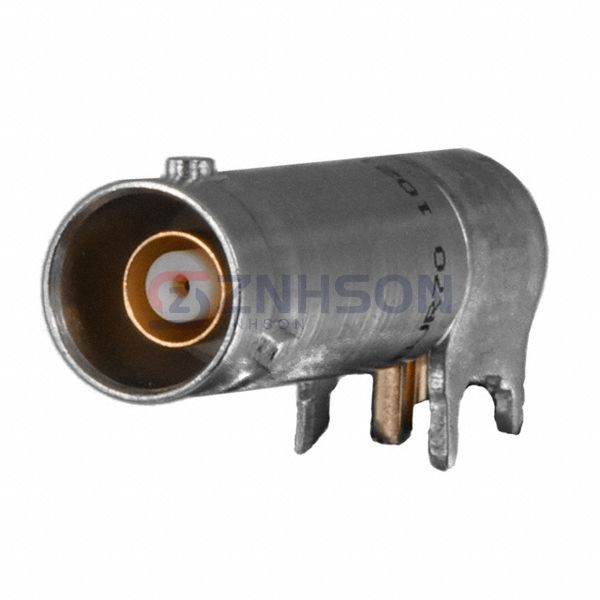

CBJR70

Cinch Connectivity Solutions Trompeter

Manufacturer

Cinch Connectivity Solutions Trompeter

Description:

CONN TRB JACK R/A PCB

Datasheet:

CBJR70 Datasheet

$103.23

Available to order

Reference Price (USD)

$35.37000

10+

$31.93000

25+

$30.59120

50+

$29.24180

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The CBJR70 from Cinch Connectivity Solutions Trompeter is a high-performance RF coaxial connector designed for reliable signal transmission in demanding applications. As part of our premium Coaxial Connectors (RF) collection, this component features excellent impedance matching and low signal loss characteristics. These connectors boast superior shielding against EMI/RFI interference, ensuring clean signal transfer even in electrically noisy environments. The durable construction with gold-plated contacts provides long-term reliability with minimal insertion loss. Common applications include telecommunications infrastructure (5G base stations, microwave links), aerospace avionics systems, medical imaging equipment (MRI machines), and test & measurement instruments. The CBJR70 is particularly suitable for high-frequency applications up to 18GHz, making it ideal for satellite communications and radar systems.

Specifications

Product Status: Active
Connector Style: TRB, Twinaxial/Triaxial
Connector Type: Jack, Female Socket (Concentric)
Contact Termination: Solder
Shield Termination: Solder
Impedance: Non-Constant
Mounting Type: Through Hole, Right Angle
Mounting Feature: -
Cable Group: -
Fastening Type: Bayonet Lock
Frequency - Max: 500 MHz
Number of Ports: 1
Features: Three Lug
Housing Color: Silver
Ingress Protection: -
Center Contact Material: Beryllium Copper
