CD54AC86F3A
Harris Corporation
Harris Corporation

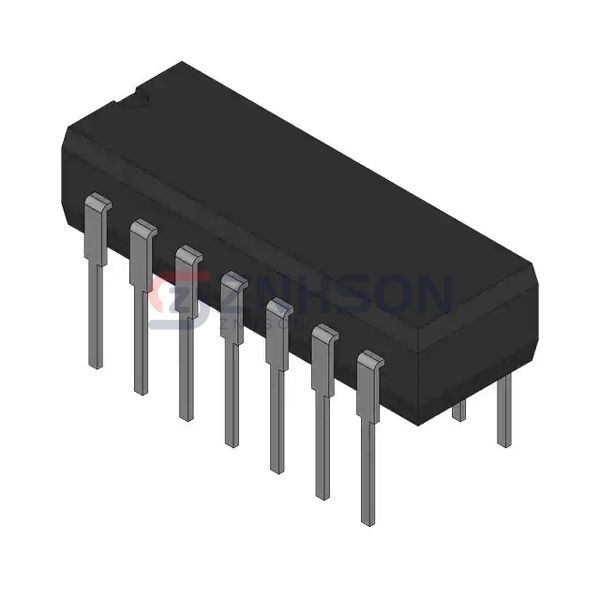

QUAD 2-INPUT EXCLUSIVE-OR GATE
$1.64
Available to order
Reference Price (USD)
1+
$1.64000
500+
$1.6236
1000+
$1.6072
1500+
$1.5908
2000+
$1.5744
2500+
$1.558
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Harris Corporation's CD54AC86F3A exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The CD54AC86F3A is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: XOR (Exclusive OR)
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 1.5V ~ 5.5V
- Current - Quiescent (Max): 4 µA
- Current - Output High, Low: 24mA, 24mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 10.8ns @ 5V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-CERDIP
- Package / Case: 14-CDIP (0.300", 7.62mm)
