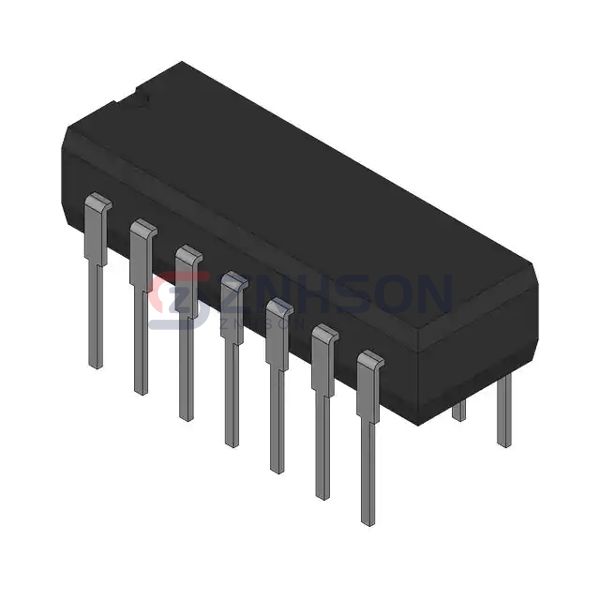

CD54HC02F
Harris Corporation
Harris Corporation
NOR GATE, HC/UH SERIES
$10.08
Available to order
Reference Price (USD)
1+
$10.08000
500+
$9.9792
1000+
$9.8784
1500+
$9.7776
2000+
$9.6768
2500+
$9.576
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Harris Corporation's CD54HC02F exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The CD54HC02F is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: NOR Gate
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 5.2mA, 5.2mA
- Logic Level - Low: 0.5V ~ 1.8V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 15ns @ 6V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-CDIP
- Package / Case: 14-CDIP (0.300", 7.62mm)
