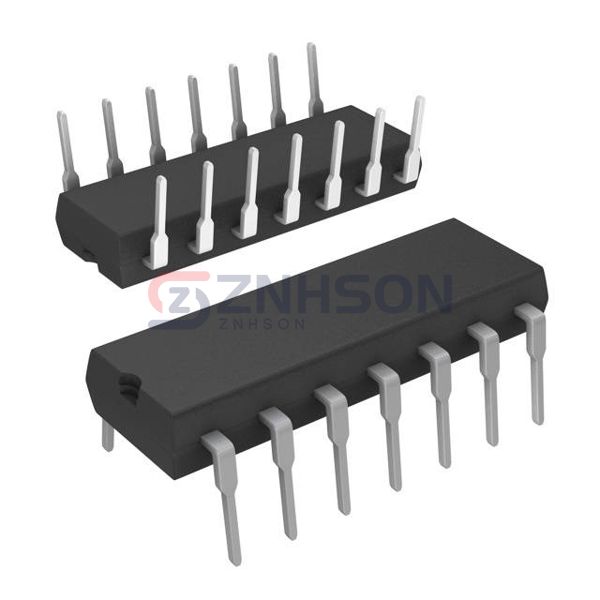

CD74HC4066E
Texas Instruments
Texas Instruments
IC SWITCH QUAD 1X2 14DIP
$0.76
Available to order
Reference Price (USD)
1+
$0.60000
10+
$0.53100
25+
$0.49920
100+
$0.40730
500+
$0.32200
1,000+
$0.25760
2,500+
$0.23345
5,000+
$0.21735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CD74HC4066E from Texas Instruments's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The CD74HC4066E is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Active
- Switch Circuit: SPST - NO
- Multiplexer/Demultiplexer Circuit: 1:1
- Number of Circuits: 4
- On-State Resistance (Max): 70Ohm
- Channel-to-Channel Matching (ΔRon): 500mOhm
- Voltage - Supply, Single (V+): 2V ~ 10V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): -
- -3db Bandwidth: 200MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -72dB @ 1MHz
- Operating Temperature: -55°C ~ 125°C (TA)
- Mounting Type: Through Hole
- Package / Case: 14-DIP (0.300", 7.62mm)
- Supplier Device Package: 14-PDIP
