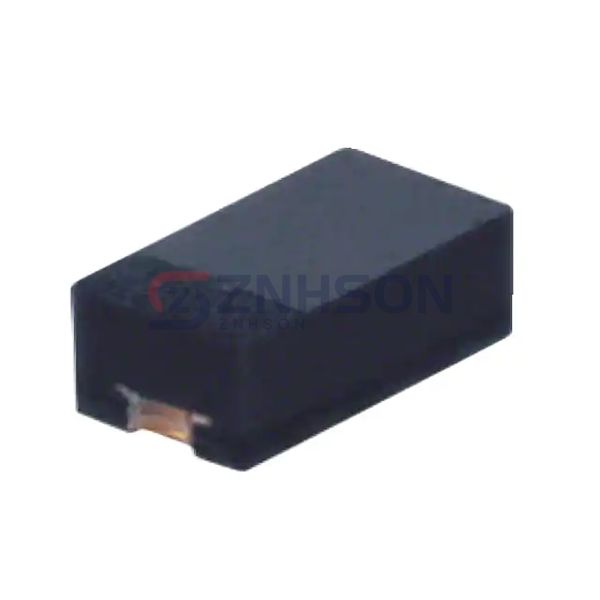

CDBU0520-HF
Comchip Technology
Comchip Technology
DIODE SCHOTTKY 20V 500MA 0603
$0.43
Available to order
Reference Price (USD)
4,000+
$0.08268
8,000+
$0.07808
12,000+
$0.07119
28,000+
$0.06660
100,000+
$0.06430
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CDBU0520-HF by Comchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the CDBU0520-HF ensures long-term reliability even in harsh operating conditions. Trust Comchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 500mA
- Voltage - Forward (Vf) (Max) @ If: 470 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: 100pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: 2-SMD, No Lead
- Supplier Device Package: 0603/SOD-523F
- Operating Temperature - Junction: 125°C (Max)
