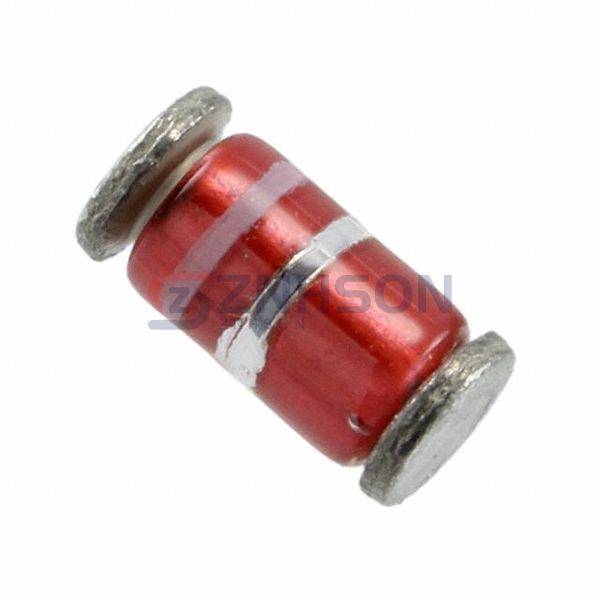

CDLL5242B
Microchip Technology
Microchip Technology
DIODE ZENER 12V 10MW DO213AB
$3.09
Available to order
Reference Price (USD)
1+
$4.76000
10+
$4.25000
25+
$3.82520
100+
$3.48500
250+
$3.14500
500+
$2.82200
1,000+
$2.38000
2,500+
$2.26100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CDLL5242B from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the CDLL5242B is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 12 V
- Tolerance: ±5%
- Power - Max: 10 mW
- Impedance (Max) (Zzt): 30 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 9.1 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AB, MELF
- Supplier Device Package: DO-213AB
