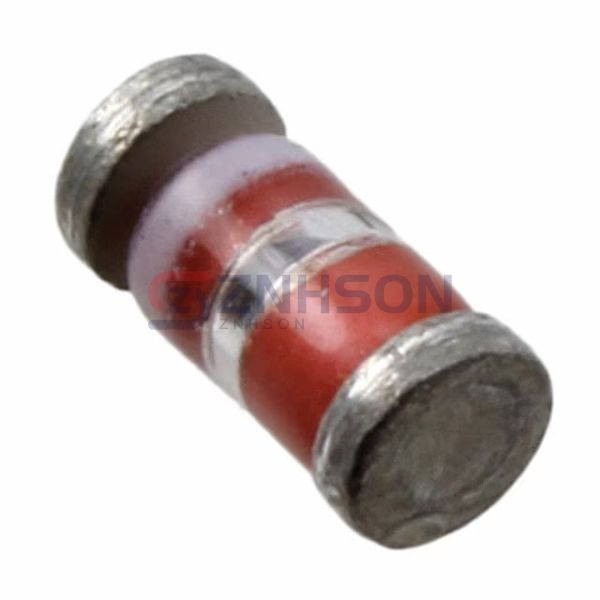

CDLL5523BE3
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$6.40
Available to order
Reference Price (USD)
1+
$6.40500
500+
$6.34095
1000+
$6.2769
1500+
$6.21285
2000+
$6.1488
2500+
$6.08475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CDLL5523BE3 from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the CDLL5523BE3 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 5.1 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 26 Ohms
- Current - Reverse Leakage @ Vr: 2 µA @ 2.5 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AA
- Supplier Device Package: DO-213AA
Related Products
Microchip Technology
JANTX1N4112C-1/TR
Taiwan Semiconductor Corporation
BZX85C5V1 R0G
Vishay General Semiconductor - Diodes Division
BZX884B30L-HG3-08
Panjit International Inc.
MMBZ5246B_R1_00001
onsemi
SZMMSZ24T1G
Micro Commercial Co
1N6009B-TP
Microchip Technology
1N4973
Vishay General Semiconductor - Diodes Division
MMBZ5240B-E3-08
Semtech Corporation

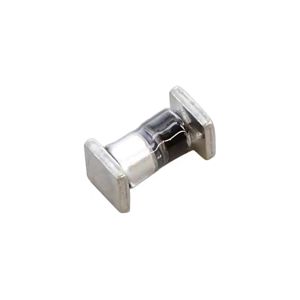

JANTXV1N4970US.TR
