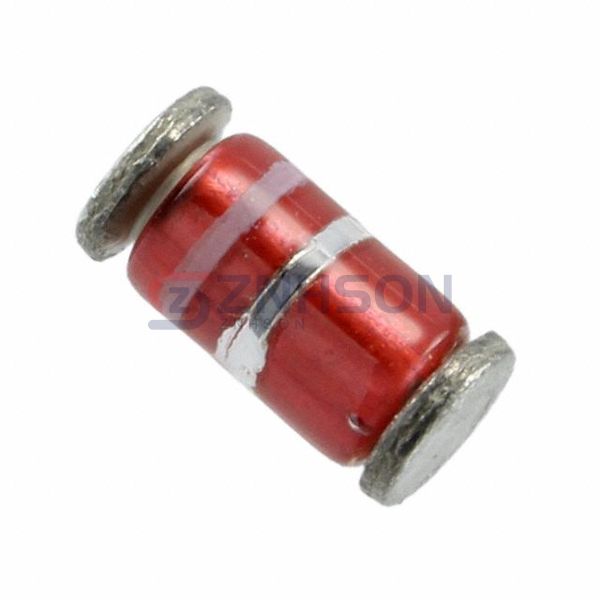

CDLL5933D
Microchip Technology
Microchip Technology
DIODE ZENER 22V 1.25W DO213AB
$11.28
Available to order
Reference Price (USD)
100+
$10.57400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CDLL5933D by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the CDLL5933D is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22 V
- Tolerance: ±1%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 17.5 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 16.7 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AB, MELF
- Supplier Device Package: DO-213AB
