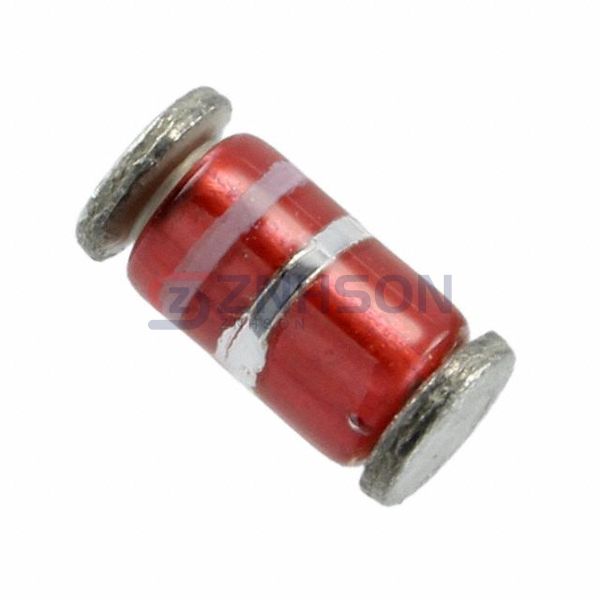

CDLL5946D
Microchip Technology
Microchip Technology
DIODE ZENER 75V 1.25W DO213AB
$11.28
Available to order
Reference Price (USD)
100+
$10.57400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CDLL5946D from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the CDLL5946D is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 75 V
- Tolerance: ±1%
- Power - Max: 1.25 W
- Impedance (Max) (Zzt): 140 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 56 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AB, MELF
- Supplier Device Package: DO-213AB
