CF25501D0R0-05-NH
Cvilux USA
Cvilux USA
CF25 SERIES 0.50MM(.020") ZIF ON
$0.71
Available to order
Reference Price (USD)
1+
$0.71000
500+
$0.7029
1000+
$0.6958
1500+
$0.6887
2000+
$0.6816
2500+
$0.6745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

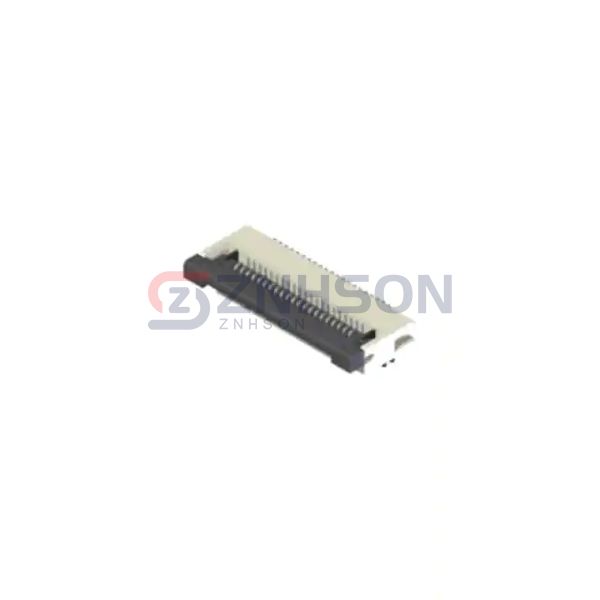

Introducing the CF25501D0R0-05-NH FFC/FPC Connectors from Cvilux USA, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The CF25501D0R0-05-NH series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Cvilux USA's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for CF25501D0R0-05-NH when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 50
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.087" (2.20mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Actuator Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 105°C
- Material Flammability Rating: UL94 V-0
