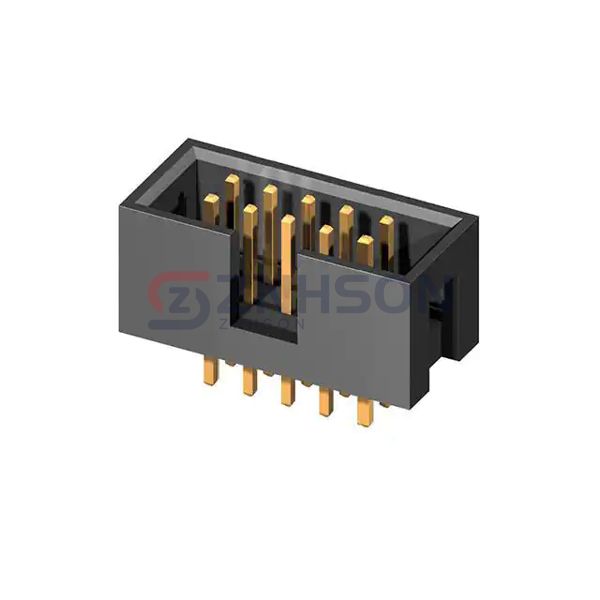

CH87102V200
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
500+
$0.2772
1000+
$0.2744
1500+
$0.2716
2000+
$0.2688
2500+
$0.266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CH87102V200 from Cvilux USA is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the CH87102V200 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Cvilux USA for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
