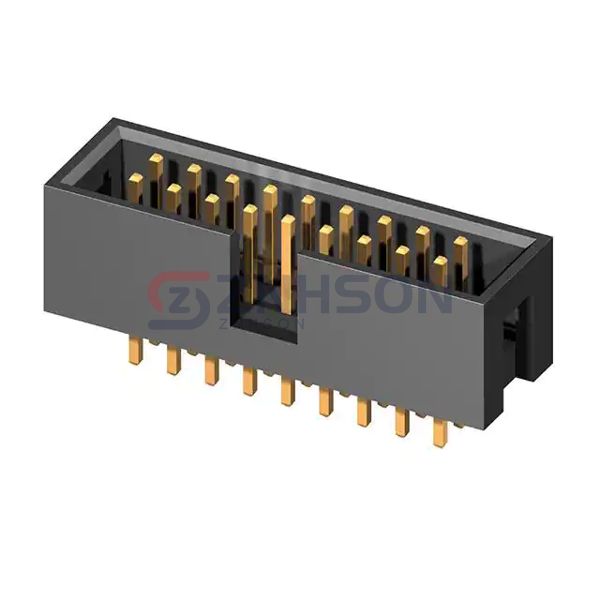

CH87162V201
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CH87162V201 by Cvilux USA is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Cvilux USA delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.110" (2.80mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
