CH87202V201
Cvilux USA
Cvilux USA
2.54MM(.100) DUAL ROW BOARD STRA
$0.31
Available to order
Reference Price (USD)
1+
$0.31000
500+
$0.3069
1000+
$0.3038
1500+
$0.3007
2000+
$0.2976
2500+
$0.2945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

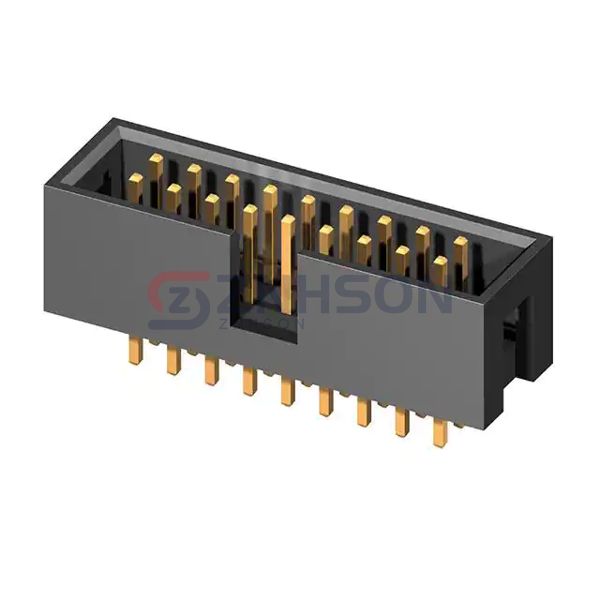

Discover the CH87202V201 rectangular connector header from Cvilux USA, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the CH87202V201 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Cvilux USA guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.110" (2.80mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.09mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
